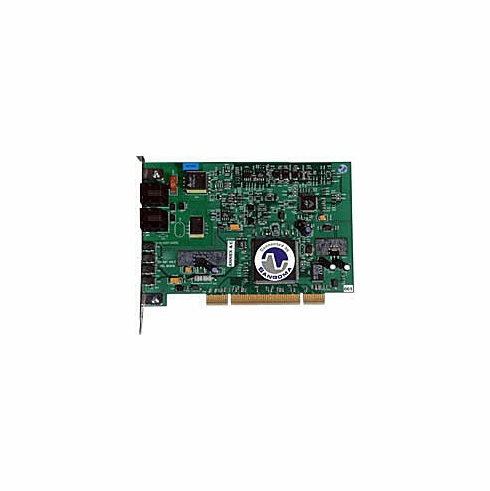

Sangoma ADSL PCI Controller

Sangoma ADSL PCI Controller

$250.00
$250.00
Sale Sold out





S518 ADSL Data
Technical Specifications
  • Designed and built to server standards of performance and reliability.
  • PCI 2.2 bus interface, 64 bit (3.3v) and 32 bit (5v) compliant.
  • Self-configuring and line optimizing.
  • Built in POTS filter for splitterless connection to shared Fax or phone line.
  • Power: 520Ma at 5v.
  • MTBF: > 100,000 hours.
  • Temperature range: 0 – 45C.
  • All set-up and configuration is in software or by machine BIOS.
  • Dimensions: 170mm x 99 mm.
  • Will connect properly to any current Central Office DSLAM on a POTS line in North America, providing at least the same performance as the Telco recommended hardware.

    RJ11 pinouts
    Pin Signal
    2 RING
    3 TTIP

    Operating systems
    Windows 2000, Windows XP, Windows 9x, Windows ME, Linux (all versions, releases and distributions from 1.0 up), Open BSD, NetBSD.

    ADSL Standards
    ITU G.992.1 (G.DMT) ITU G.992.2 (G.Lite) ITU G.992 Annex A, Annex C ANSI T1.413 Issue 2.

    Line protocols
    PPP over ATMPPP over Ethernet, Ethernet over ATM, and IP over ATM.

    Warranty
    Three years parts and labor.

    Certification
    FCC Part 15 Class A, FCC Part 68, CE.

    Diagnostic Tools
    WANPIPEMON, SNMP, System logs.

    Production quality
    ISO 9002
