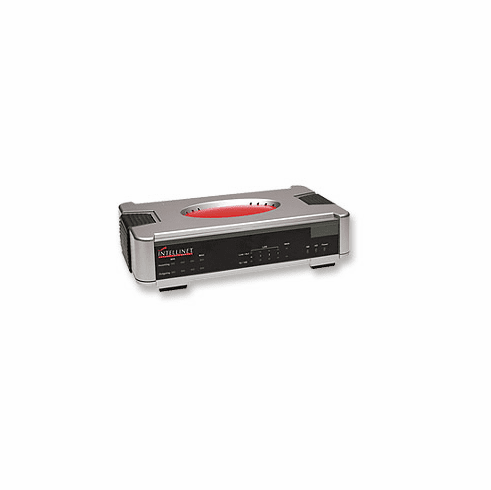

SOHO Server

• Multi-function device in one
• 4 port switch
• WAN port with PPPoE
• Supports any IDE hard drive up to 200 GB (not included)
• Built-in firewall and DHCP server
• Easy to configure Web interface

Router:

• Connects to a broadband modem or to an Ethernet backbone
• Connects all PCs to the Internet
• Supports multiple static IPs (Multiple NAT)
• Acts as a DHCP server or client for your network
• Routing protocols: RIPv1, RIPv2
• IP Routing: TCP, UDP, ICMP
• ARP IP Alias Network Attached Storage:
• Cross platform file sharing
• Supports CIFS, HTTP, NFS, AFP protocols
• User and shared level security
• Optimized for maximum storage capacity
• File system optimized for server performance
• Self-repairing and defragmentation for data integrity and performanceVirtual Private Networking (VPN):
• 20 IPSec tunnels available
• PPTP server / client4 Port Switch:
• Auto-sensing Ethernet switch
• 4-Port 10/100 switchFirewall:
• NAT firewall to protect your PCs from outside intruders
• Prevent DoS (Denial of Service) attacks
• Packet / URL filteringPhysical Specifications:
• Power: External power adapter 12 V DC / 3 A
• Ports: WAN: One 10/100 RJ-45
• LAN: Four 10/100 RJ-45
• Cabling Type: UTP Category 5 or better
• Standards: IEEE 802.3, IEEE 802.3u
