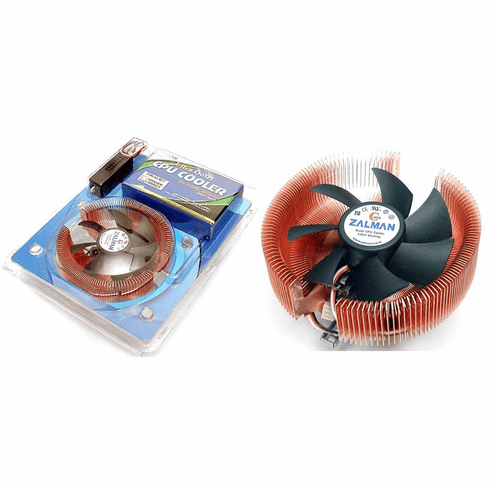

Zalman CNPS7000-Cu
Zalman CNPS7000-Cu
Regular price
$54.55
Regular price
Sale price
$54.55
Quantity
Couldn't load pickup availability
| Features |
|---|
| 1. Does not generate noise or vibration in Silent Mode. |
| 2. Pure Copper base materials ensure excellent heat dissipation. |
| 3. INTEL Pentium 4 (Socket478) and AMD Athlon 64 (Socket754) compatible design for broad compatibility. |
| 4. 92mm fan inside the FHS maximizes airflow. |
| 5. Adjustable fan speed controller (FAN MATE 1) enables control of noise and fan performance. |
| *Fan should be set to Normal Mode if overclocking. * We are not responsible for any damage resulting from CPU OVERCLOCKING. |
| Parts |
| 1. FHS Assembly (CNPS7000-CU) |
| 2. Two (2) Clip Supports - For Pentium 4 (Socket 478) |
| 3. Two (2) Bolts - For fastening the clip |
| 4. Two (2) Nipples - For Athlon 64 |
| 5. Thermal Grease |
| 6. Adjustable Fan Speed Controller (FAN MATE 1) |
| 7. User's Manual |
|
Specifications |
1 ) FHS
| FHS | Specifications | |
| Dimensions (mm) | 109(L) x 109(W) x 62(H) | |
| Dissipation Area (cm2) | 3170 | |
| Base Material | Pure Copper | |
| Weight (g) | * 773 | |
| Thermal Resistance(Deg.C/W) | Silent Mode | 0.27 |
| Normal Mode | 0.20 | |
The weight of CNPS7000-Cu is 773g, so special care should be taken when moving a computer equipped with CNPS7000-Cu.
We are not responsible any damage that occurs when moving a computer.
2)FAN
| Fan | Silent Mode | Normal Mode |
| Rot. Speed | 1350 RPM +/-10% | 2400 RPM +/-10% |
| Noise Level (dB) | 20.0 | 25.0 |
| Bearing Type | 2-Ball | |
3) FAN RPM Controller
| FAN MATE 1 | Specifications |
| Dimensions (mm) | 200 (L) X 21(H) X 23 (W) |
| Weight (g) | 20 |
| Output Voltage | 5 ~ 11 V +-2% |
| Allowable Wattage | 6W or lower |
| Compatible of CPU |
INTEL Pentium 4(Socket 478)
| Core Type | Willamette (0.18 micron) | Northwood (0.13 micron) |
| Silent Mode | 2.0GHz | Up to 3.06GHz or higher |
| Normal Mode |
AMD Athlon 64 (Socket 754)
| Silent Mode | Up to 2.0GHz or higher | |
| Normal Mode | ||
List of Mainboards that Interfere with CNPS7000
