4 Pole Speaker Box Female D Series Heavy Duty Chassis Panel Mount Connector Bulkhead Coupler, Black Housing/Solder Contacts on back
4 Pole Speaker Box Female D Series Heavy Duty Chassis Panel Mount Connector Bulkhead Coupler, Black Housing/Solder Contacts on back
- D Shaped Housing is universally compatible with standard hole spacing on D Series Panels and Wall Plates.
- The durable construction prevents grounding issues since each coupler is isolated when installed in a panel or plate.
- The ruggedized housing is corrosion-resistant and protects the connection from blunt force, heavy impact, and vibration.
- Can be mounted from the front or rear of the panel/wall plate (mounting screws/nuts are not included).
- Available in different finishes for simplified port identification when using multiple connections within one panel.
- Perfect for custom A/V in-rack, in-floor, or in-wall installations
- Easy to use and designed for maximum performance and dependability.

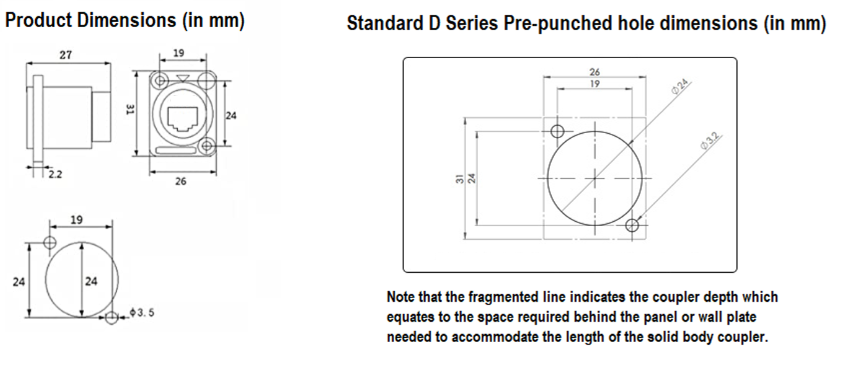

RiteAV’s D Series Chassis Panel Mount Couplers are universally compatible with the pre-punched holes on D Series rack panels and wall plates that can accommodate the D-style connector. The countersunk holes on the diagonal corners of the coupler align perfectly with the preconfigured holes on the panels and plates for a seamless fit and simple installation.
The single-body robust design provides a long service life for residential, industrial, and commercial-grade audio, video, and network connections. Bolts and nuts are sold separately and tethered dust caps are also available for purchase.

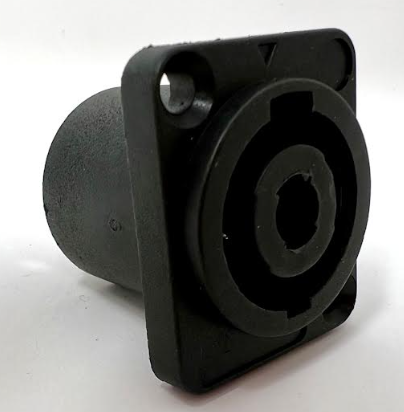

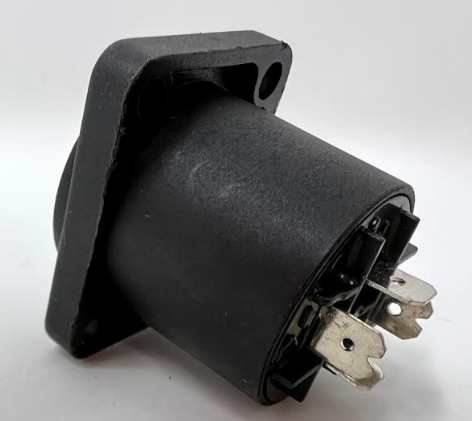

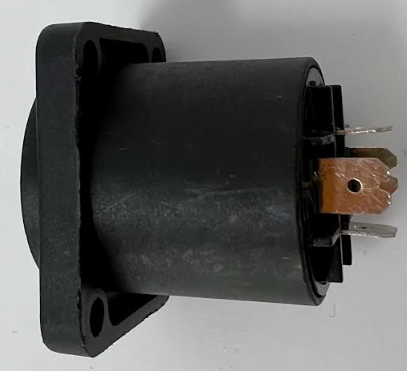

This particular D Series Coupler has black housing (alternate colors are available) and accepts a 4 Pole Speaker Box Male terminated cable on the front side and solder cup contact termination on the backside. The contacts must be soldered on the backside of the coupler. The input on the front side is expertly crafted to ensure that a 4 Pole Speaker Box Cable fits securely into place and can be disconnected using the integrated twist lock release mechanism. Note that this coupler will also work in 2 Pole applications.
We offer a variety of D Series Couplers in an assortment of different styles, finishes, and configurations to suit all of your A/V requirements. Be sure to also check out our full line of pre-configured D Series Panels, Wall Plates, and accompanying cables.
