RiteAV

Cat 6 D Series Chassis Panel Mount Connector Pass Through Solderless Bulkhead Coupler, Silver Metal Housing/Black Cat 6

Cat 6 D Series Chassis Panel Mount Connector Pass Through Solderless Bulkhead Coupler, Silver Metal Housing/Black Cat 6

Regular price $9.95
Regular price Sale price $9.95
Sale Sold out
Size
  • D Shaped Housing is universally compatible to standard hole spacing on D Series Panels and Wall Plates.
  • The durable construction prevents grounding issues since each coupler is isolated when installed in a panel or plate.
  • Ruggedized metal housing is corrosion-resistant and protects the connection from blunt force, heavy impact and vibration.
  • Can be mounted from the front or rear of the panel/wall plate (mounting screws/nuts are not included).
  • Available in different finishes for simplified port identification when using multiple connections within one panel.
  • Perfect for custom A/V in-rack, in-floor or in-wall installations
  • Easy to use and designed for maximum performance and dependability.

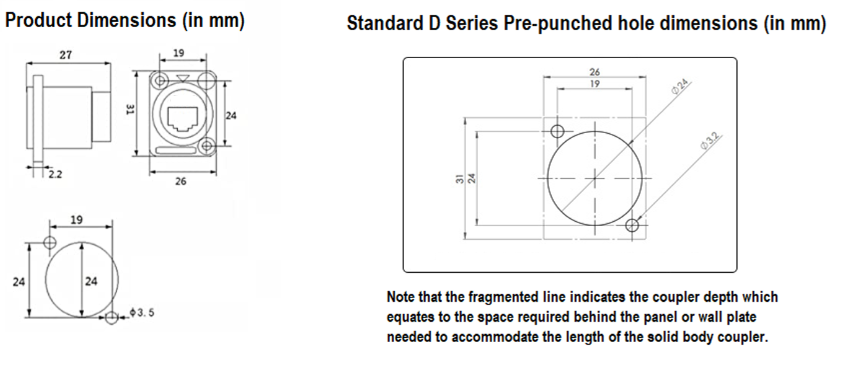

RiteAV’s D Series Chassis Panel Mount Couplers are universally compatible to the pre-punched holes on D Series rack panels and wall plates that can accommodate the D style connector. The countersunk holes on the diagonal corners on the coupler align perfectly to the preconfigured holes on the panels and plates for a seamless fit and simple installation. The feed through design enables pre-terminated cables to plug into both sides of the coupler the same way. No soldering or additional tools are required; just plug and play. The single body robust design provides a long service life for residential, industrial and commercial-grade audio, video and network connections. Bolts and nuts are sold separately and tethered dust caps are also available for purchase.

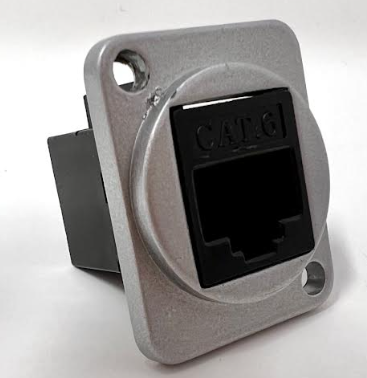

This particular D Series Coupler has a silver metal interchangeable housing (alternate colors are available) and accepts a Cat6 Terminated Cable on the front and back side of the coupler. The Black Cat6 Coupler features 50 micron gold-plated contacts to ensure clear transmission by eliminating signal loss typically caused by corrosion.  The keystone is removable to allow for easy upgrades or re-configurations in the future

We offer a variety of D Series Couplers in an assortment of different styles, finishes and configurations to suit all of your A/V requirements. Be sure to also check out our full line of pre-configured D Series Panels, Wall Plates and accompanying cables.
