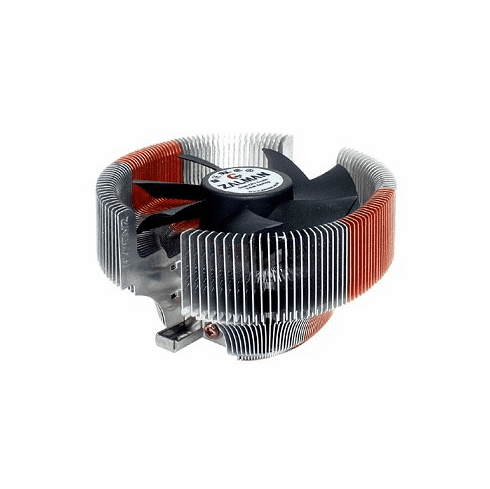

CNPS7000-ALCU Quiet CPU Cooler for P4

CNPS7000-AlCu for P4

Zalman has once again revolutionized the quiet CPU cooling market. What can you say about their new cooler, the Zalman CNPS7000-AlCu, except that it is indeed an awesome and innovative design. The CNPS7000-AlCu is the superior quiet CPU cooler - cooling at an amazingly low 20.0 decibels, cooling both current and future CPUs super-efficiently and with superior cooling performance. This innovative quiet cooler has been designed to work with all previous and upcoming Pentium 4 (Socket 478) CPUs.

A Flower Cooler With a New Design

Zalman has taken the basic concept of their flower cooler and improved upon it. This CPU cooler (CNPS7000-AlCu) also has far superior heat dissipation because of its numerous fins and the copper incorporated into its design. It is similar in design to the flower coolers as it also has much of the look of a rolodex. But this “rolodex” is circular rather than in the shape of a “flower”, with a silent fan located in the middle of it. The incorporation of a silent fan directly in the middle of 360 degrees of thin, rolodex-like fins is the genius of Zalman. This allows for the hottest air to be efficiently directed away from the core and in and out through super-cooling fins.

Improved Thermal Resistance Numbers

Take a look at the thermal resistance numbers on this cooler:

Thermal resistance for the CNPS7000-AlCu is .29 Degrees C/W.

Compare this to the CNPS6500-AlCu, Zalman’s previous cooler for the Pentium 4, cooling up to 2.8 Ghz. It’s thermal resistance is .36 Degrees C/W (lower is better).

Or, take a look at the all copper CNPS6500-Cu. Its thermal resistance was .33 Degrees C/W (lower than the CNPS6500-AlCu, but still 4 degrees higher than this new cooler, the CNPS7000-Cu). Plus the CNPS6500-Cu was 898 grams, weighing in at 448 grams over Intel’s 450 gram weight limit. This required extreme care when moving a computer with the CNPS6500-Cu attached. This new cooler, the CNPS7000-AlCu is under Intel’s 450 gram limit, at only 445 grams.

Benefits to the Zalman CNPS7000-AlCu for P4:

Parts:

Quiet CPU Cooler Limitations

*Please note: there a limited number of motherboards which do not work with the Zalman CNPS7000-AlCu due to interference with CNPS7000's Clip, due to interference with the graphics card, or due to CPU Socket not located in the center of the retention guide.

The following is a complete list of known motherboards which do not work with this CPU cooler:
