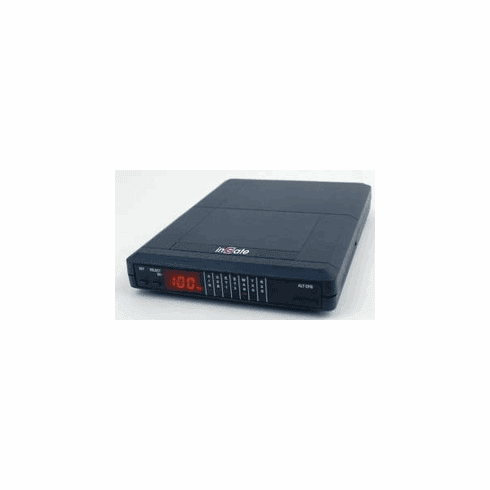

Ingate Firewall S1200

Dimensions: 220X254X44 mm, 8.66X10X1.75 inch SIP Users Included: 2 Maximum Registered SIP Users: 400 Number of Ports: 2 The Ingate Firewall¨a 1200 is specifically designed to offer full firewall protection for a branch, home or temporary/telecommuter office LAN while allowing the use of SIP-based communications. The Ingate Firewall¨a 1200 offers the full set of features standard on all Ingate Firewalls, including VPN and complete support for SIP, giving even the smallest office complete firewall security with minimal effort or risk. The Ingate Firewall¨a 1200 offers a conveniently small footprint that allows the small branch or home office to have the feature set of a larger machine. It is also perfect for enterprises that want one seamless, centrally managed infrastructure throughout a company, including home workers. As with all Ingate products security feature updates are free of charge and security administrators can configure the firewall to automatically detect available updates via the Web. Ingate Firewalls¡Ý Ingate¨a offers firewalls to fit the needs of any enterprise to provide full data network security. Coupled with our VPN termination module, Ingate offers secure access from anywhere in the world. Since many companies are considering the benefits of Voice over IP and Instant Messaging, Ingate also supports the Session Initiation Protocol (SIP) to provide enterprises with the benefits of realtime communications. Ingate Firewalls¡Ý are attractively priced and have no data user restrictions. With Ingate, enterprises can grow their use of SIP based communications and pay for capacity as the number of users expands. Ingate Firewalls¡Ý Most businesses have a Local Area Network (LAN) with Internet access. To maintain privacy and security on the LAN, it must be protected and separated from the public Internet by a firewall. Ingate Firewalls¡Ý are installed around the world successfully protecting the networks of large and small enterprises, government agencies and banks from intruders. Our firewalls are fully featured, supporting stateful inspection and packet filtering with rules defined and maintained by the network security administrator utilizing our award winning user interface. In addition to the basic firewall functions, Ingate also offers an encrypted Virtual Private Network termination module that allows remote workers and travellers to connect to the Local Area Network and utilize all of the services available to their in-house colleagues. A Quality of Service module can be added to any Ingate Firewall. Ingate¨ˆs larger firewalls can support failover if two units are connected with a heartbeat cable. The second unit is then monitoring the status of the active unit. If the active unit fails the second unit will automatically take over. The configuration on both units in the failover pair are synchronised. Ingate¨ˆs firewalls are provided with the ability to perform remote configuration updates for all of the firewalls installed in an organization. Ingate offers unlimited firewall user licenses and free software upgrades to provide our customers with the best value in the industry. And, each of our firewall models uses the same robust software, so large enterprises can deploy units of various sizes and configure each one in exactly the same way. Ingate supports SIP SIP is the signalling protocol that is becoming for realtime communication what HTTP is for the Web. Industry experts predict that SIP will become the standard protocol, and providers and suppliers are beginning to roll out products and services to support this vision. Ingate is proud to offer the world¨ˆs only enterprise firewall with complete support for the SIP protocol. The SIP proxy and SIP registrar that come standard on all Ingate Firewalls enables the seamless, secure traversal of SIP communications with the addition of a single piece of hardware: the Ingate Firewall¡Ý. Ingate¨ˆs SIP proxy and registrar manages registrations, allowing the system to keep track of where to send incoming session requests even on networks using Network Address Translation (NAT). It is also possible to restrict which users are allowed to register and from where. The system administrator can monitor currently registered users at any time.


INGATE 1200 FIREWALL FEATURES
Processor: VIA C3, 533
Interfaces(10/100 Mbit/s): 2
Interfaces: (1 Gbit/s) No
Redundant Power Supply: No
Flash disc for System Operation: Yes
Dimension WxDxH ¨C mm: 220x254x44
Dimension WxDxH ¨C inch: 8.66"x10"x1.75"
Certifieringar: CE, FCC, UL

PERFORMANCE
Throughput (Mbit/s) (1500 byte paket): 60
Packets per second (46 byte packet): 12000
VPN tunnels: 50
3DES (168-bit) (Mbit/s) (1438 byte packet): 12
AES (128-bit) (Mbit/s) (1438 byte paket): 28
Sip connection set up (SIP+RTP), time: 0.15 s
RTP data delay (10 Mbit/s, 100 Mbit/s): 0.19/0.08 ms
Number of concurrent RTP sessiones: 50

MANAGEMENT
Automatic check for new release: Yes
Web GUI: Yes
DHCP client: Yes
SNMP: Yes
Internal log to HD: No
Syslog: Yes
E-mail events: Yes
Unlimited data users: Yes
Free software upgrades: Yes
Purchase of VPN module, unlimited VPN tunnels: Yes

FIREWALL FUNCTIONALITY
Stateful inspection: Yes
Packet filtering: Yes
DHCP proxy: Yes
Proxies for TCP, UDP and FTP: Yes
NAT/PAT: Yes
QoS (bandwidth limitation and priority): Yes
Authentication: RADIUS

VPN FUNCTIONALITY
Authentication algorithms: MD5, SHA1
X.509-certificates: Yes
IPSec (3DES och AES): Yes
PPTP gateway: Yes
SIP Functionality: SIP Proxy: Yes
SIP Registrar: Yes
SIP traffic out&in without extra proxy: Yes
SIP traffic to private IP addresses (NAT/PAT): Yes
TLS encryption: Yes
Max recommended registered SIP users: 400
