| Overview

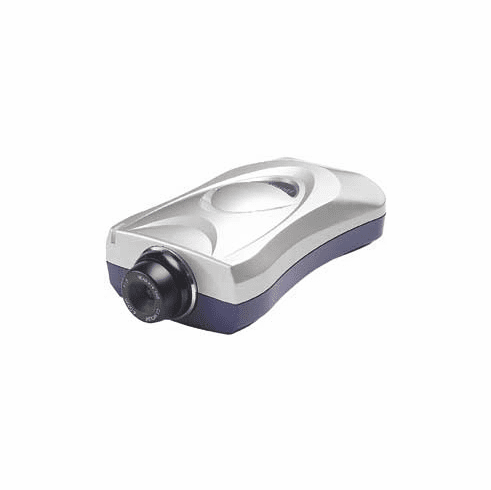

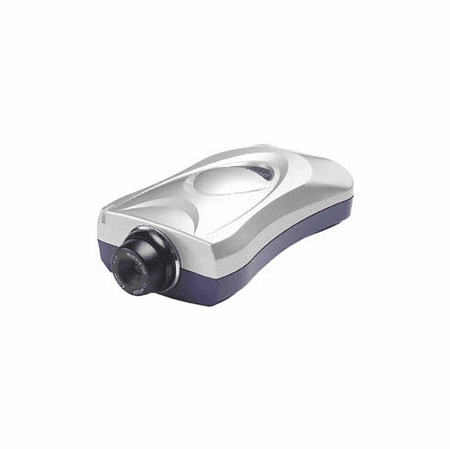

A Network IP Camera is a stand-alone
device which allows a user to view live, full
motion video from anywhere on a computer network,
even over the Internet, using a standard web-browser.
Businesses are increasingly finding this a more
economical alternative to high-priced Closed Circuit
TV (CCTV) systems. And the use of existing LAN
wiring greatly simplifies installation and eliminates
the expense of installing additional cabling.
Features such as motion sensing with email notification,
simultaneous user login, and FTP upload capability
further differentiate the device from current
video technology.
Specifications
General
- Built-in
web server
- Motion
sensing email notification and image recording
- 30
frames per second full motion video
- Up
to 100 simultaneous users
- Password
protected user access
- Input
to trigger external events
- Configurations
for image and security settings
- Built-in
Linux operating system
- Firmware
upgrade via Internet
Network
- Standard
RJ45 twisted pair cable
- Integrated
HTTP and FTP servers
- Protocol
supports: TCP/IP, UDP, ARP, FTP, HTTP, PING
(Option) POP3, SMTP, SNMP, MIBII, Proxy Agent,
BOOTP, DHCP, DNS, Telnet, etc.
System
Requirements
- Window®
98 or higher, NT, Linux®, Unix, and Mac®
- Internet
Explorer® 4.0 or higher or Netscape Navigator®
6.0 or higher
Compression
- Resolution:
640 x 480, 320 x 240, 160 x 120
- 10
levels of JPEG image compression
- Advanced
video compression
- Compression:
High 80:1, Low 3:1
Hardware
- 32
bit RISC CPU with network enhancement
- 384
Kbyte video frame buffer
- 2
Mbyte flash memory
- 8
Mbyte SDRAM
- Serial
port for direct access
- 12
V Power supply included
- Output
of 12 V to signal external devices, max 50
mA
- 5.8
x 3.4 x 1.6 in.
Sensor and Lens Specification
- 1/3"
CMOS lens
- 326,668
pixels, 24-bit color, YUV digital output
- Automatic
exposure / Gain / White balance control
- Image
control, Brightness, Contrast, Saturation,
Hue, Exposure, Sharpness
- 664
x 492 pixel array elements
- Electronic
shutter: 1 / 30 s ~ 1 / 15734 s
- Backlight
compensation
- Replaceable
standard CS mount lens
- Focal
length 6.0 mm, Angular field of view 54º,
Object distance 0.1 m to infinity
- Maximum
Relative Aperture F1.8
