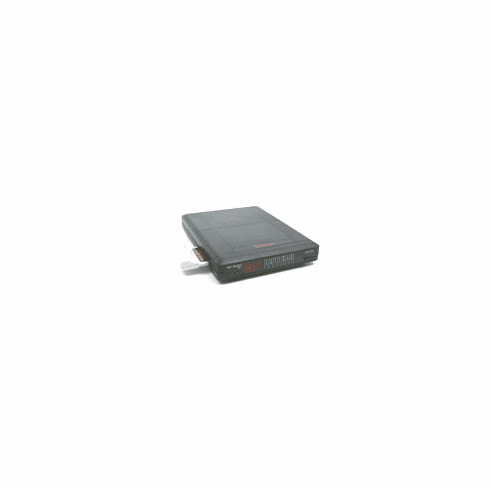

Intertek IX66 PF AirSIP (IX66-edflw PF)

Intertek IX66 PF AirSIP (IX66-edflw PF)

$255.00
$255.00
Sale Sold out









Internet Gate Overview


Internet Connection (WAN) Features:

  • Ethernet WAN Connection
    Your Internet Gate connects to the Internet through a 100 Mbs Ethernet interface. The Internet Gate connects to any Ethernet (RJ 45) connection. All computers or devices connected to the Internet Gate can share the connection and are all protected by the built-in firewall.
  • DHCP Client
    The DHCP Client enables you to get the necessary network settings from your Internet Service provider (ISP) automatically. This makes the installation easier. [Read more]
  • Dynamic DNS Client
    Dynamic DNS may be used if you have not received a static global IP address from your Internet service provider, but still want people on the Internet to easily find your network or servers.
Local Network (LAN) Connection:
  • USB Interface
    Enables you to connect a single PC (i.e. a laptop comuter without Ethernet interface (USB 1.1 Ether-over-USB).
  • DHCP Server
    Automatically assigns IP Addresses to computers, or other devices, connected to your local network.
  • DMZ (DeMilitarized Zone)
    Your model has two separate ethernet ports. DMZ is useful if you want to have an application, such as a web server, accessible on Internet but shielded from your local network.
  • Wireless
    Your model has support for 802.11b in the form of a CF-reader for wireless CF-cards. The user can decide whether to include an 802.11b card at the time of purchase or to upgrade at later date.
Security Features:
  • Router Based Firewall
    The built-in firewall protects your computer or local network from unauthorised access. The firewall uses packet filtering, stateful inspection and application proxies together with address translation to protect your PC or local network.
  • Powerfull Firewall Administration
    Use the easy-to-use web interface to administrate your firewall. Advanced users may manually add support for applications, open up specifice port ranges or even edit the rules controling the firewall.
  • Selectable Firewall Tightness
    Easy change between security profiles with a single keystroke.´The Internet connection can be blocked, set to Hi, Lo or Alternative security configurations.
  • VPN Pass through
    Virtual Private Networking (VPN) uses a public network (i.e. the Internet) to securely connect two different networks as if they were the same network. The Internet Gate supports VPN Pass through: Ipsec (ESP tunneling mode, one client), PPTP (one client), SSH.
Usability:
  • Front Panel
    The front panel gives you a presentation of the current status of the product and its connected networks.
  • Keys and Display
    The front panel keys and display are useful for diagnostics and configuration. Web Configuration
    The built-in web server provides a ways to easily configure the product.
  • Upgradable Firmware
    The Internet Gate runs on upgradable firmware which means that you easily can take advantage of new feauters in coming firmware releases.
  • Auto login and Keep-alive
    These features prevent operators from timing out your Internet connection when it is not used. You enter your log in details (if any) once in the IX66 web interface and the connection is kept alive by accessing an Internet site at regular intervals.
  • Advanced logging
    Logging of all system events. The firewall log gives you an opportunity to see what packets that has been treated by the firewall and what actions that has been taken. The logs can be sent to an external syslog server.
  • Email Notification
    Get a notification on the display when new email messages arrives to your mail box. Support for person-to-person communication:
  • SIP Support
    With support for SIP, you can communicate using telephony, presence, instant messaging, voice and video applications all the way into your private local network and still being protected by a vigorous firewall.
  • SIP Server
    If you have a registered domain name you may use the Internet Gate as a SIP server for that domain. With a DNS record pointing to the SIP server, all registered SIP users can be globally reached with the user's SIP address.
  • SIP Routing
    A number dialing plan or emergency call routing can easily be set up.
View full details
